QINGONG Rough Terrian Forklift Advantage:
1.Professional steering axle is suitable for the worst working environment, especially for the mud road.
2.Transmission is with differential lock.
3. The ground clearance of mast is 280mm, and the ground clearance of main chassis can be320mm, and the angle of departure can be 30 degree, so it has a good passing ability.
4. The driving tire adopts deep figure and big width, and it can make the machine with good stability and skid resistance.
5.Widen the mast and make the driver have a better view.
6. Better and stronger driving axle adopts cast steel structure.
7. Our rough terrain lift trucks can be equipped with many kinds of engine, for example Japan YANMAR 4TNE98 engine and so on.

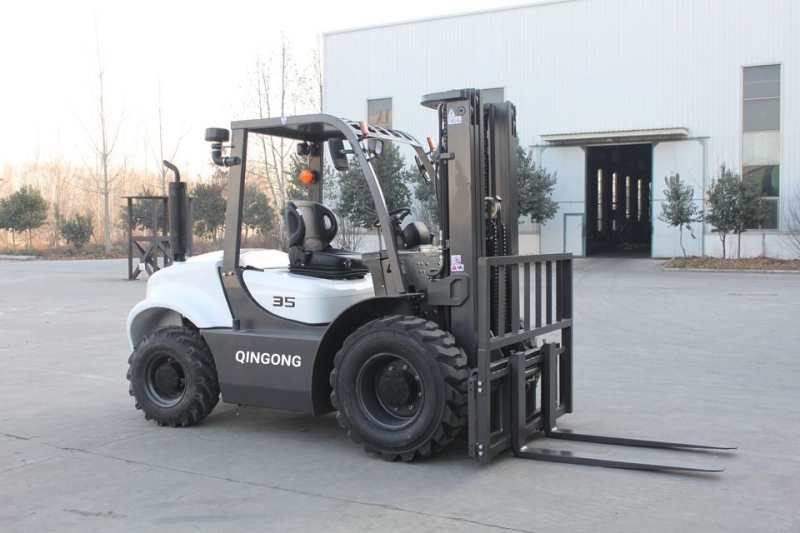

Specification for QINGONG 3.5Ton All Terrian Forklift
| Brand | QINGONG | ||
| General | 1 | Model | CPCD35Y |
| 2 | Rated capacity | 3500kg | |
| 3 | Load center | 500mm | |
| 4 | Power type | diesel | |
| 5 | Transmission | Hydraulic | |
| Dimensions | 6 | Lifting height (H1) | 3000mm |
| 7 | Free lifting height | 80mm | |
| 8 | Min. turning radius | 3000mm | |
| 9 | Overall length (including fork) (A) | 4260mm | |
| 10 | Overall width (B) | 1620mm | |
| 11 | Overall height (mast lowered) (H) | 2320mm | |
| 12 | Overall height (mast raised) (H2) | 4270mm | |
| 13 | Overall height (overhead guard) (H3) | 2320mm | |
| 14 | Fork length (A3) | 1220mm | |
| 15 | Fork width (B3) | 125mm | |
| 16 | Fork thickness (H4) | 45mm | |
| Performance | 17 | Max driving speed (with/without load) | 21/23km/h |
| 18 | Max lifting speed (with load) | 440mm/s | |
| 19 | Departure Angle | 30° | |
| 20 | Min. ground clearance | 320mm | |
| 21 | Tilting angles (forward/backward) (α/β) | 6/12° | |
| 22 | Total weight | 5200kg | |
| Engine | 23 | Engine model | 4D35G/4C6-65M22 |
| 24 | Power | 48kw | |
| 25 | Rated speed | 2500rpm | |
| 26 | Displacement | 3.168L | |
| Wheel | 27 | Front overhang (A1) | 590mm |
| 28 | Wheel base (A2) | 1850mm | |
| 29 | Front tread (B1) | 1250mm | |
| 30 | Rear tread (B2) | 1175mm | |
| 31 | Front tire | 14-17.5-14 | |
| 32 | Rear tire | 27*10-12 | |
