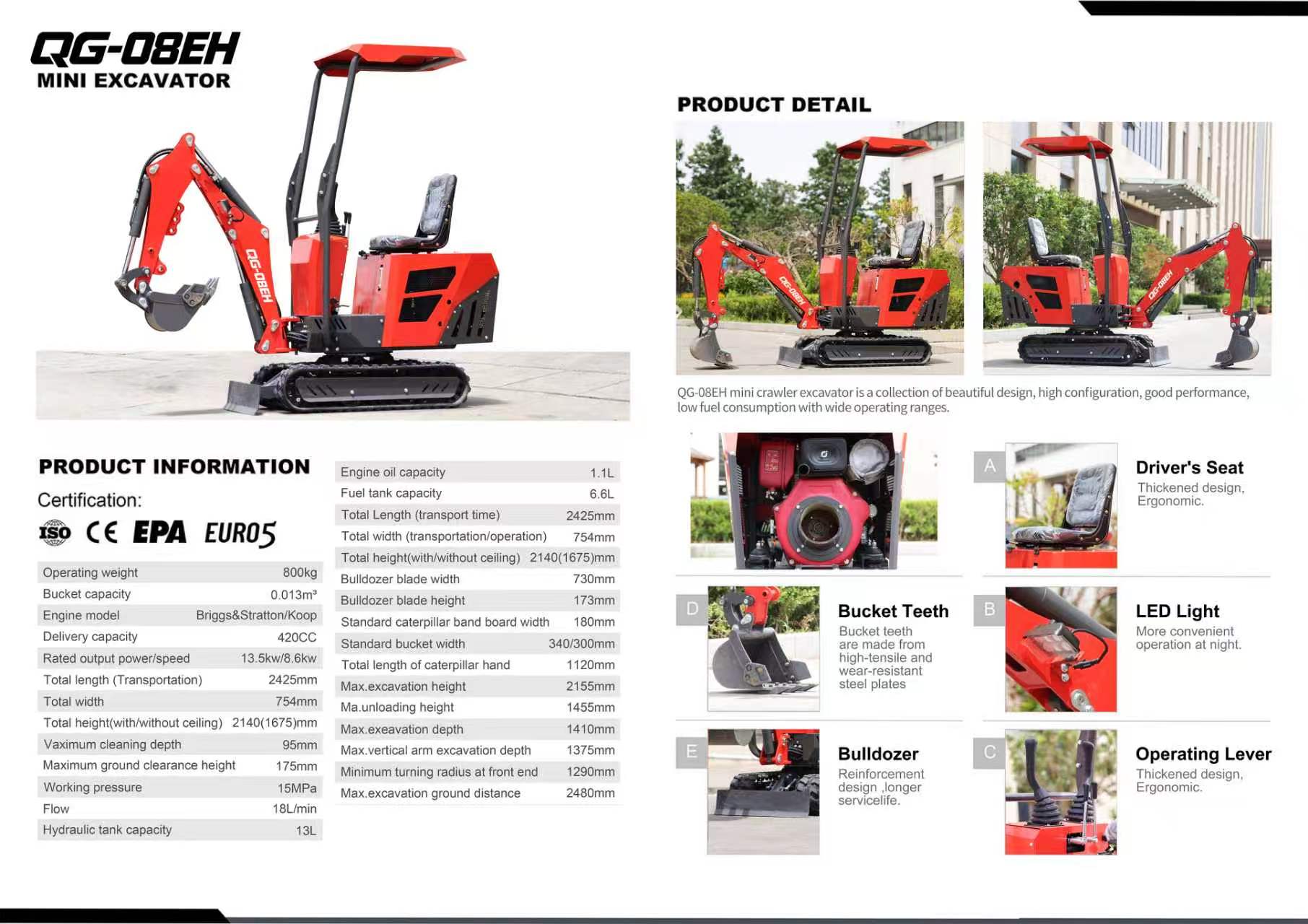

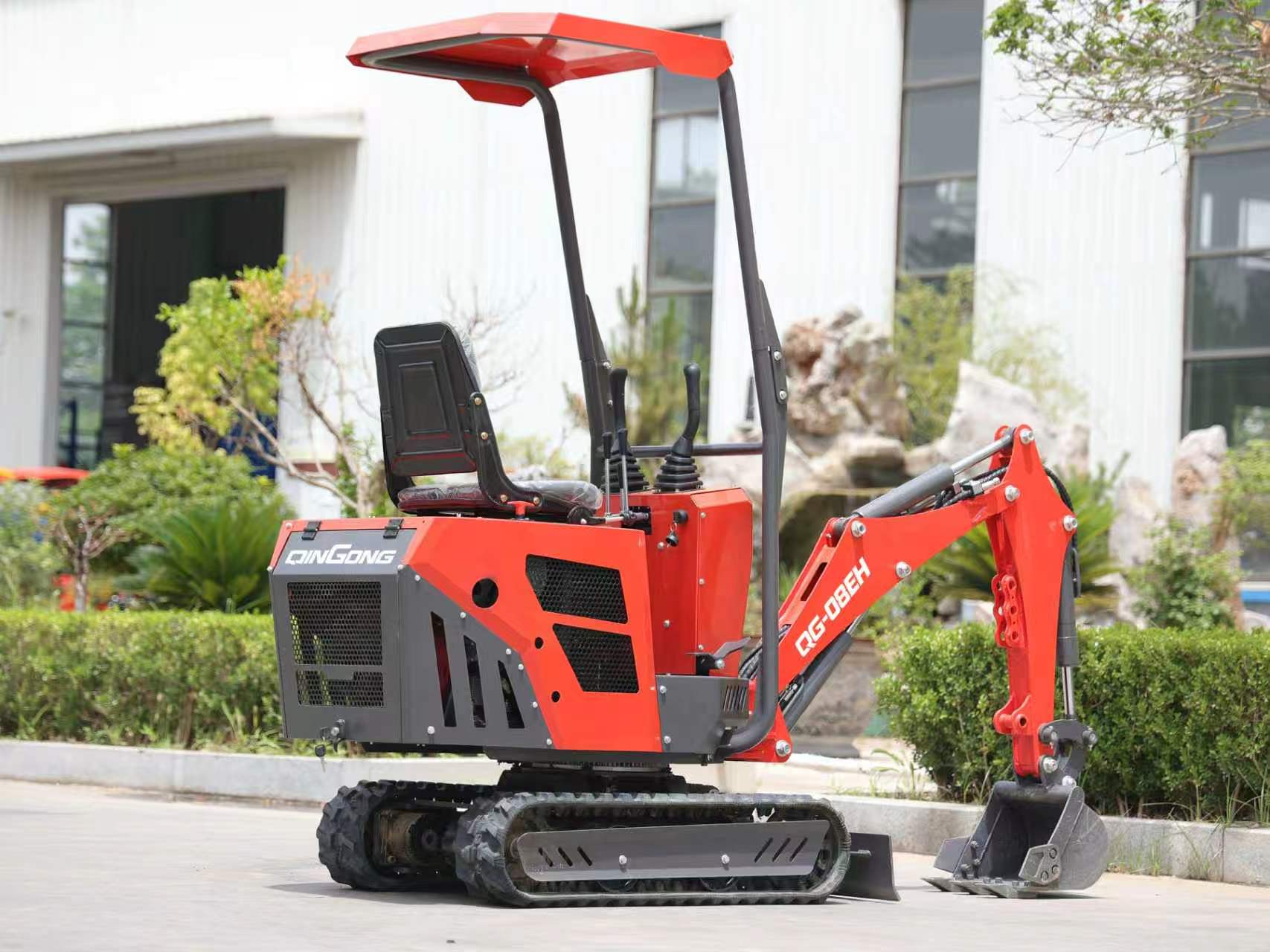

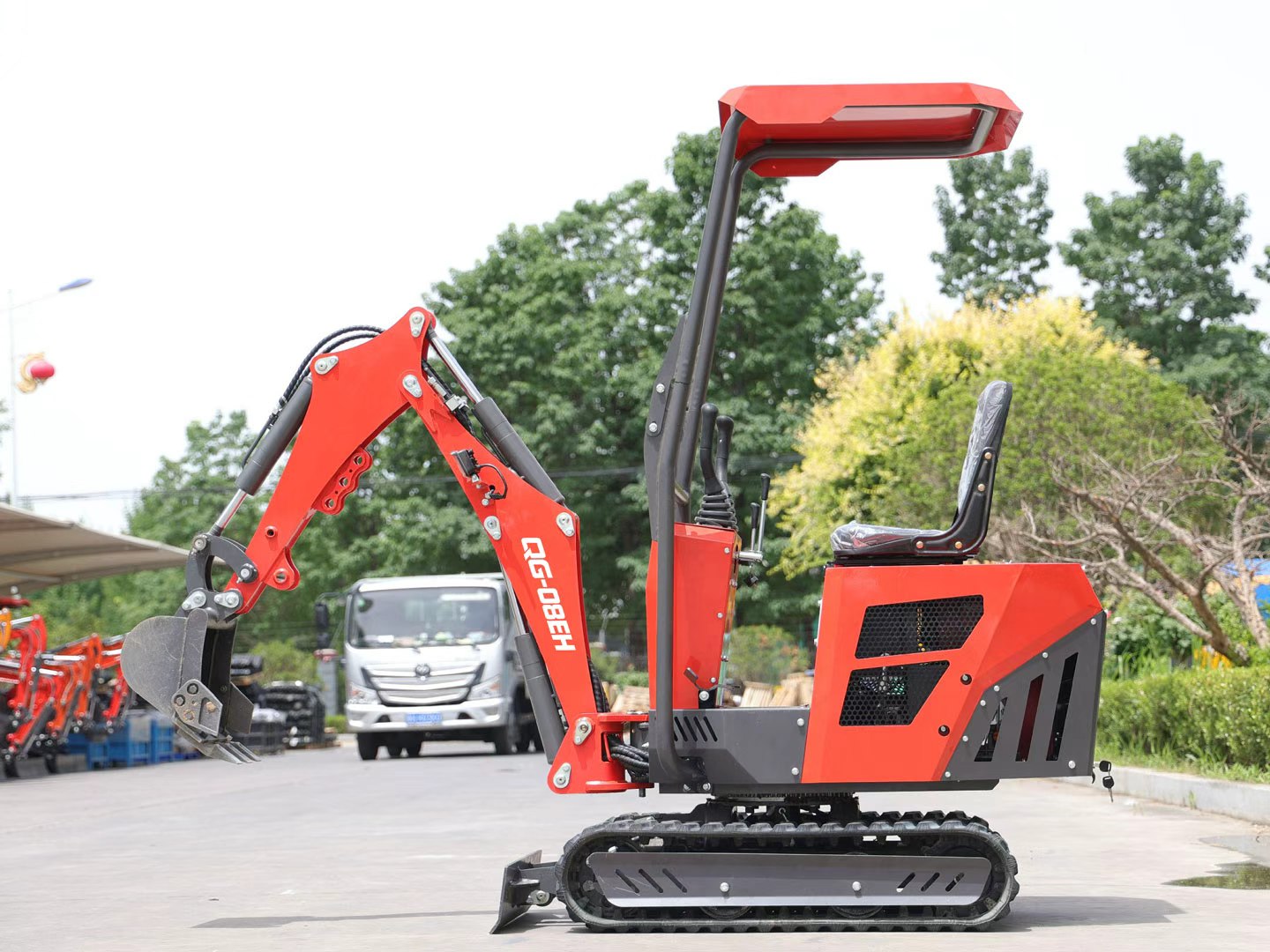

QINGONG QG-08EH MINI EXCAVATOR
- Operating weight: 800kg
- Bucket capacity: 0.013m³
- Engine model: Briggs&Stratton / Koop
- Delivery capacity: 420CC
- Rated output power/speed: 13.5kw / 8.6kw
- Total length (Transportation): 2425mm
- Total width: 754mm
- Total height (with/without ceiling): 2140mm / 1675mm
- Maximum cleaning depth: 95mm
- Maximum ground clearance height: 175mm
- Working pressure: 15MPa
- Flow: 18L/min
- Hydraulic tank capacity: 13L
- Engine oil capacity: 1.1L
- Fuel tank capacity: 6.6L
- Bulldozer blade width: 730mm
- Bulldozer blade height: 173mm
- Standard caterpillar band board width: 180mm
- Standard bucket width: 340/300mm
- Total length of caterpillar hand: 1120mm
- Max. excavation height: 2155mm
- Max. unloading height: 1455mm
- Max. excavation depth: 1410mm
- Max. vertical arm excavation depth: 1375mm
- Minimum turning radius at front end: 1290mm
- Max. excavation ground distance: 2480mm
