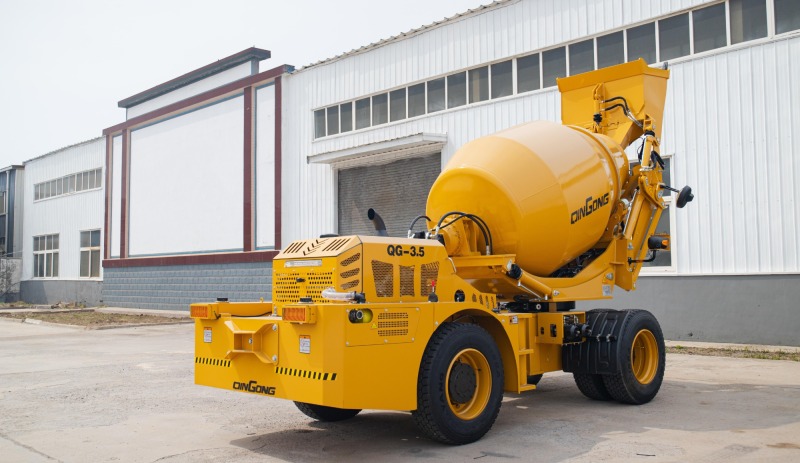

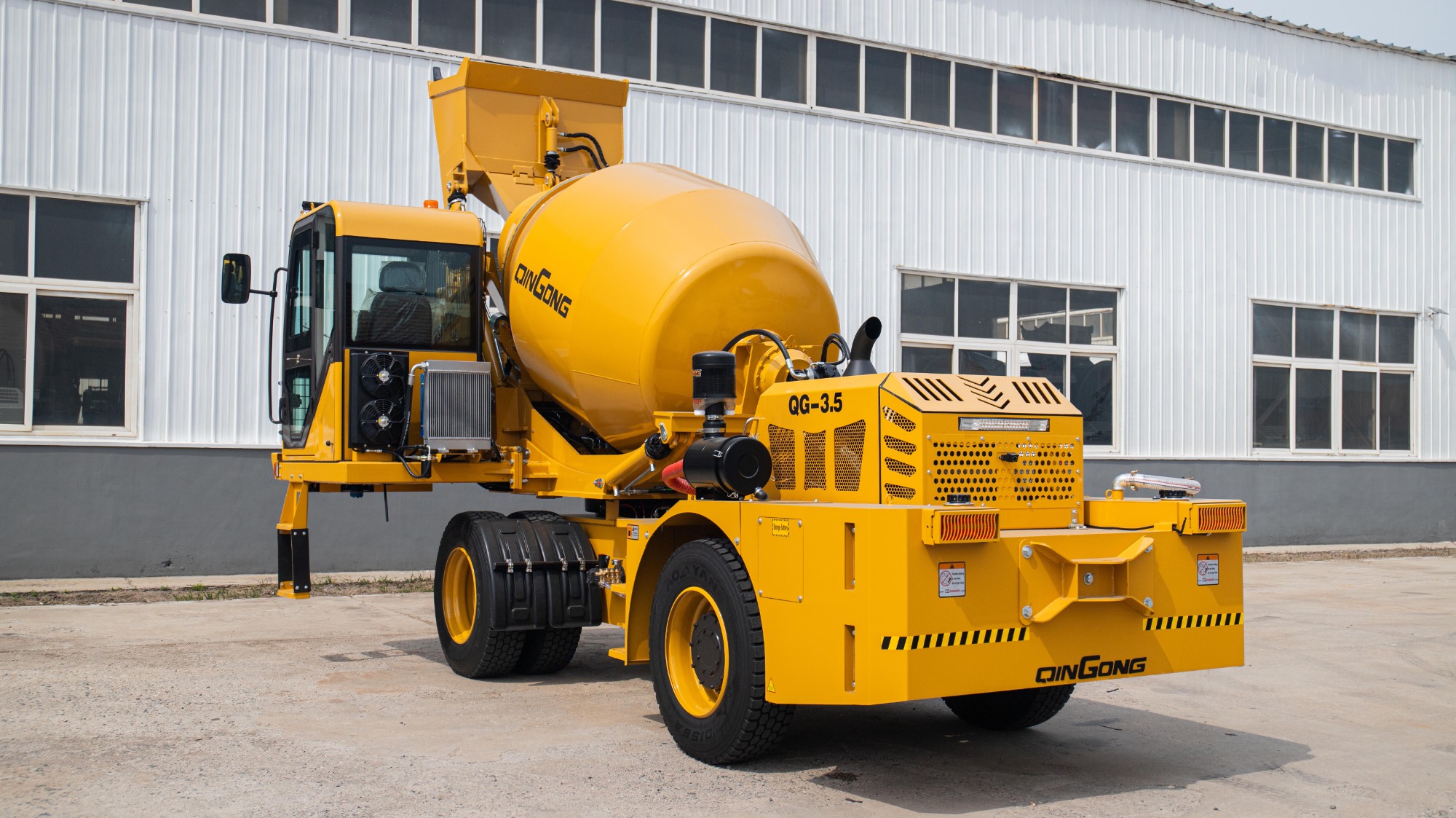

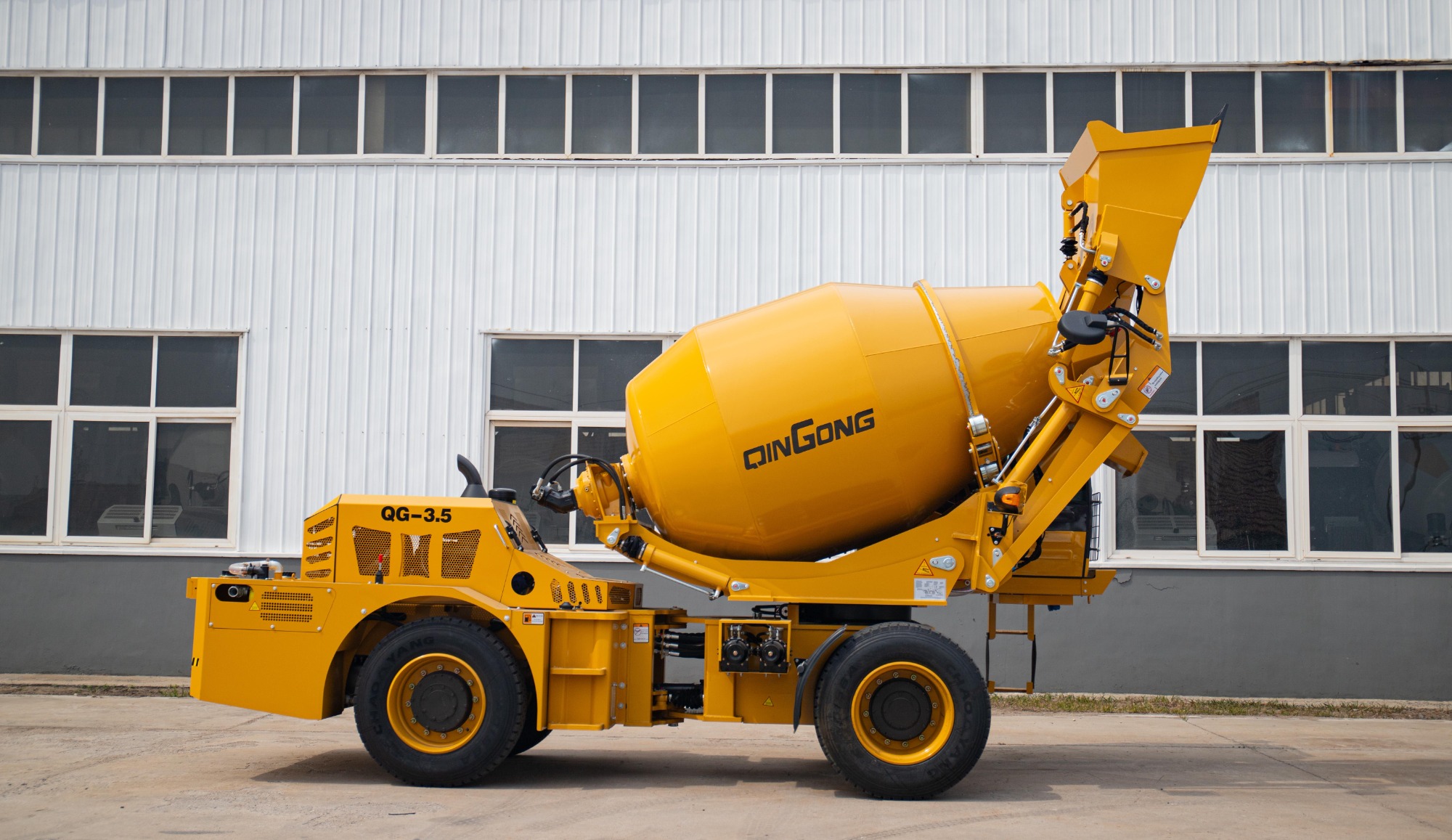

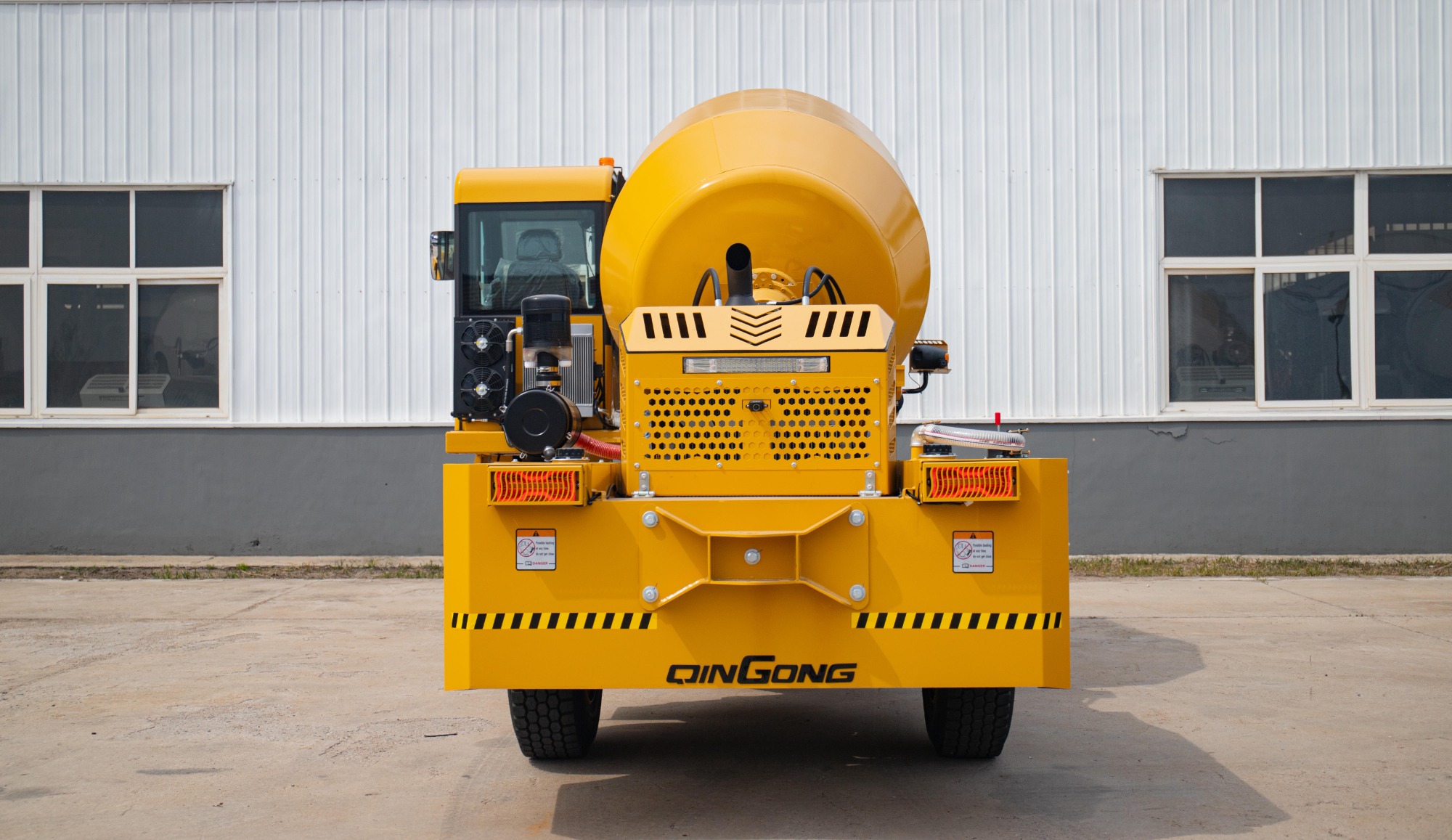

| QG-3.5 SELF-LOADING MIXER TRUCK SPECIFICATIONS |
|
Output: Maximum single batch output: 3.5 cubic meters, with a production capacity of 4–4.5 batches per hour
|
| Engine: Yuchai 4105 turbocharged engine, rated power: 85kW |
| Equipped with: 8-ton heavy-duty hydraulic double-brake axle with wheel reducer |
| Transmission: Full hydraulic transmission |
| Tiers: 12R-22.5 dual-row tires |
| Cab: Luxury cab with shock-absorbing seat, air conditioner and driving camera system |
| Equipped with: External hydraulic water suction pump |
| Equipped with: Material proportioning and weighing system |
| Water tank capacity: 900L |
| Fuel tank and hydraulic tank capacity: 130L each |
| Maximum discharge height: 2100mm |
| Overall dimension: 7550mm × 3130mm × 3250mm |
| Loader bucket volume: 0.65m³ |
| Total machine weight: 8200kg |
| Driving Form: Four-wheel drive |
| Driving speed: 10–40km/h |
