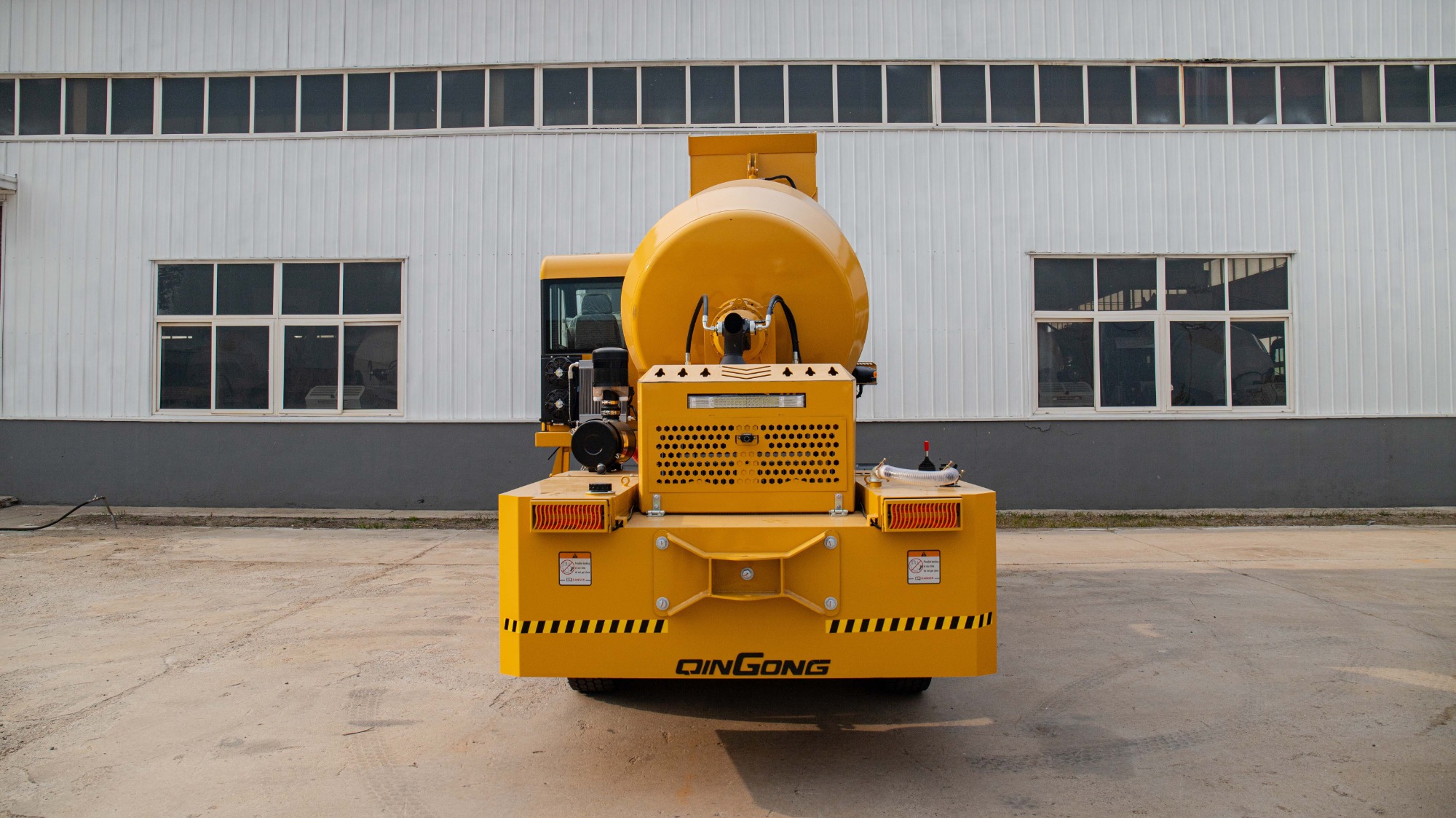

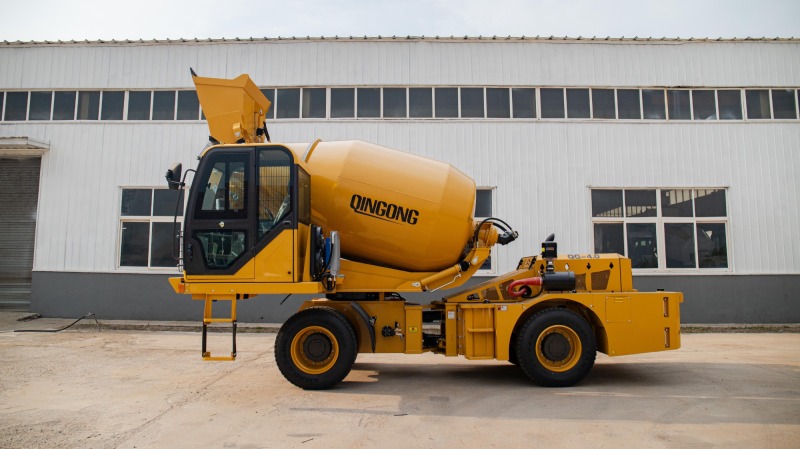

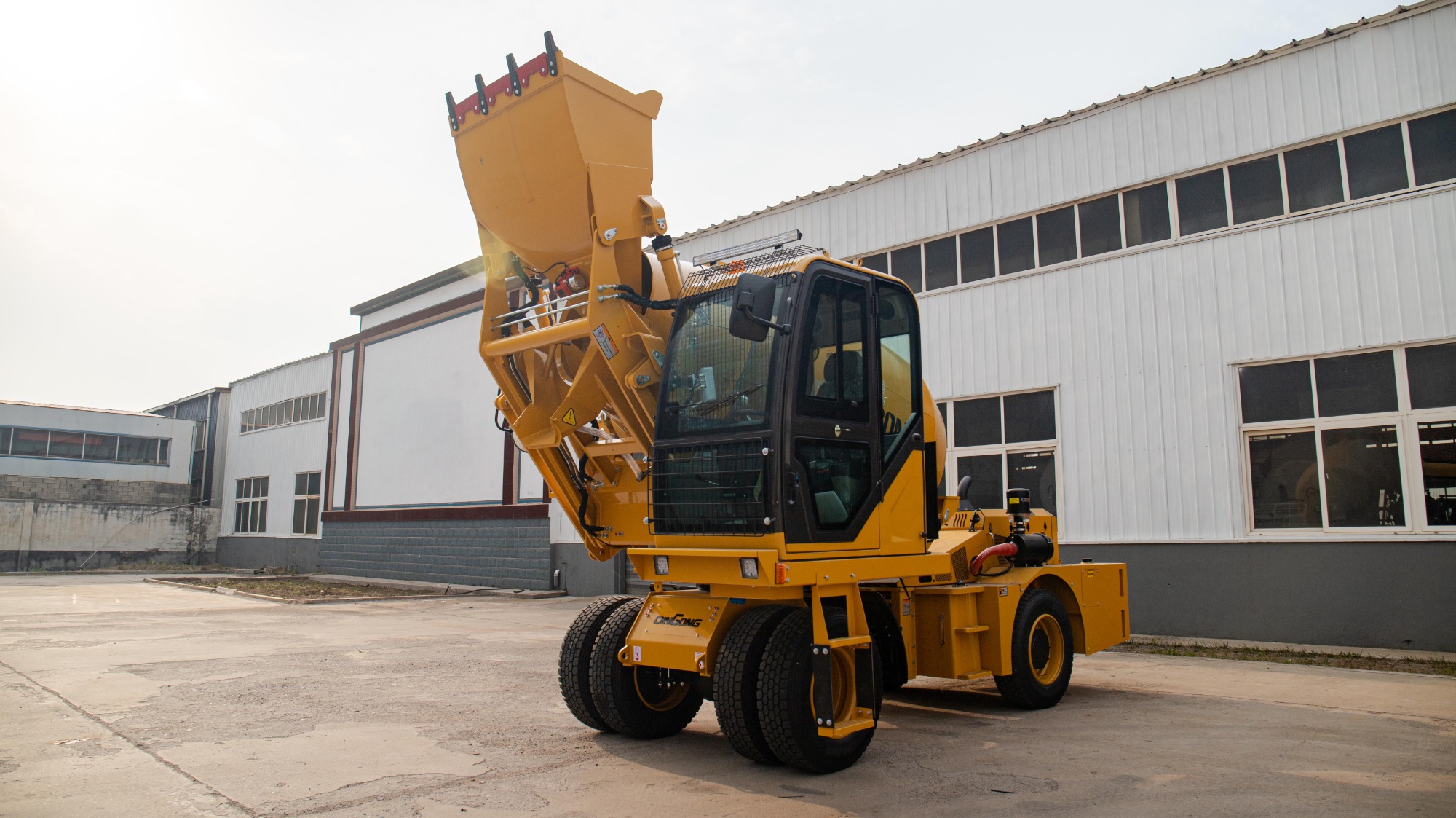

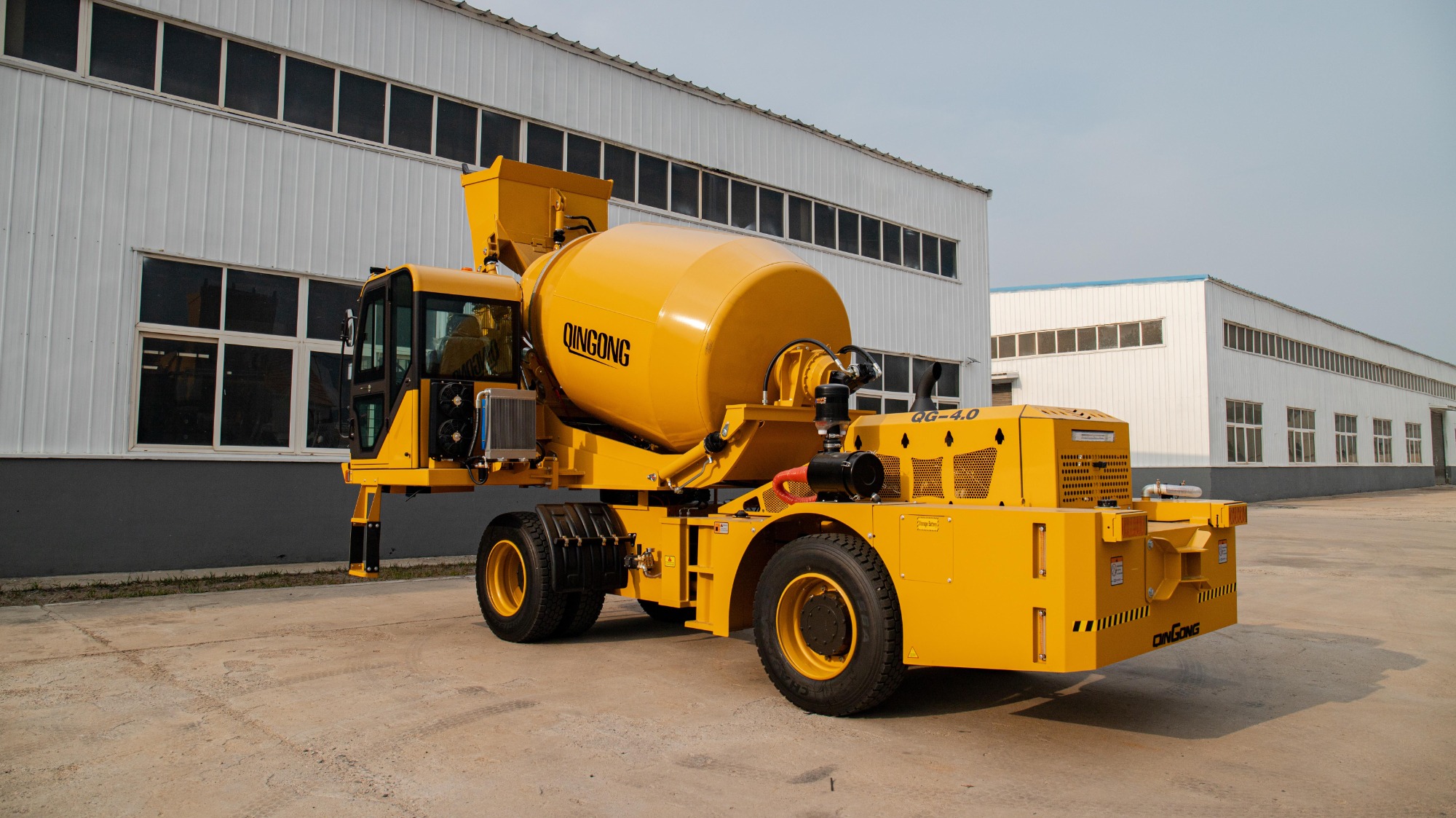

| QG-4.0 SELF-LOADING MIXER TRUCK SPECIFICATIONS |
|
Output: Maximum single batch output: 4 cubic meters, with a production capacity of 4–4.5 batches per hour
|
| Engine: Yuchai 4108 turbocharged engine, rated power: 91kW |
| Equipped with: 10-ton heavy-duty hydraulic double-brake axle with wheel reducer |
| Transmission: Full hydraulic transmission |
| Tiers: 12R-22.5 dual-row tires |
| Cab: Luxury cab with shock-absorbing seat, air conditioner and driving camera system |
| Equipped with: External hydraulic water suction pump |
| Equipped with: Material proportioning and weighing system |
| Water tank capacity: 950L |
| Fuel tank and hydraulic tank capacity: 135L each |
| Maximum discharge height: 2350mm |

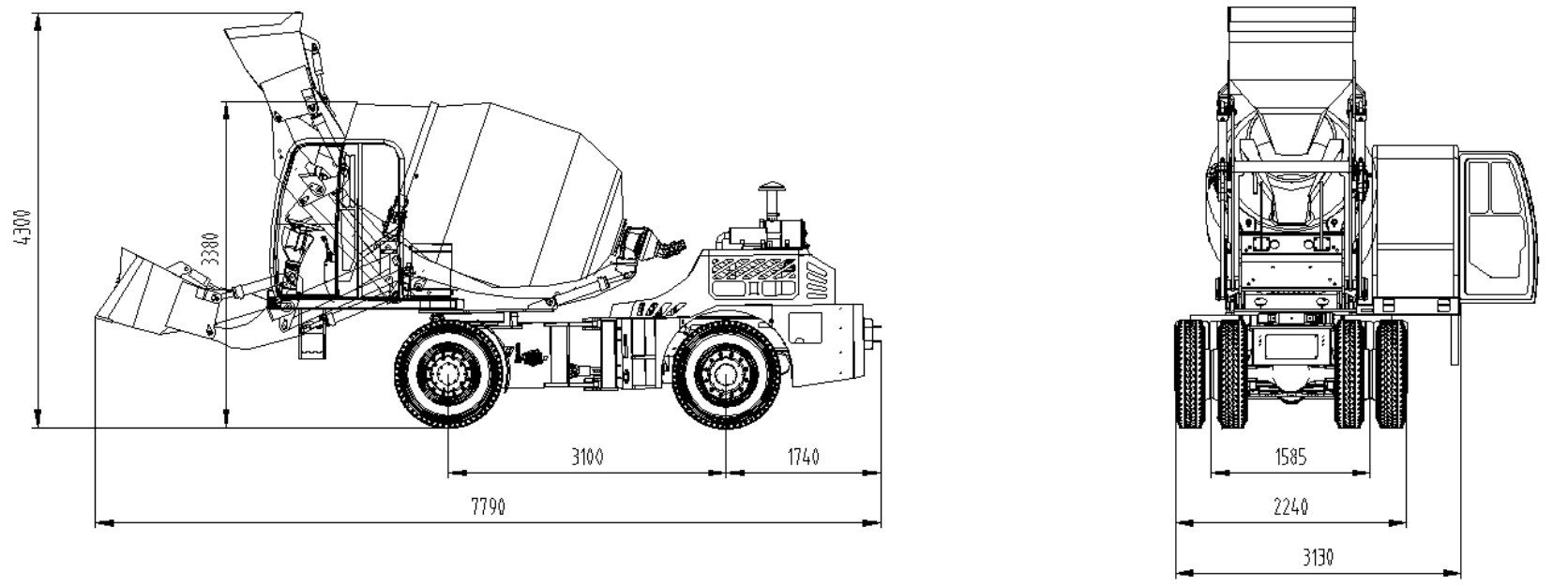

| Overall dimension: 7790mm × 3130mm × 3380mm |
| Loader bucket volume: 0.7m³ |
| Total machine weight: 9100kg |
| Driving Form: Four-wheel drive |
| Driving speed: 10–40km/h |
