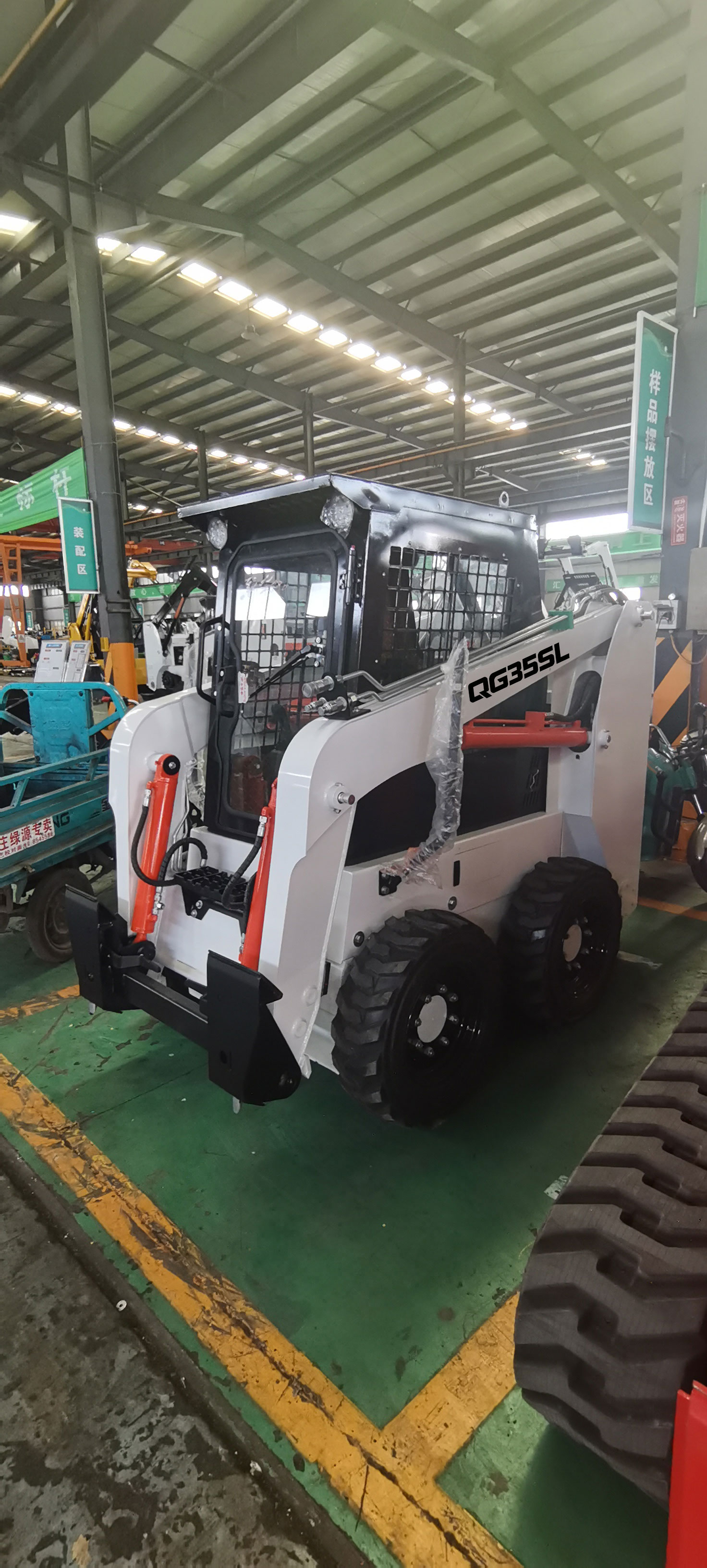

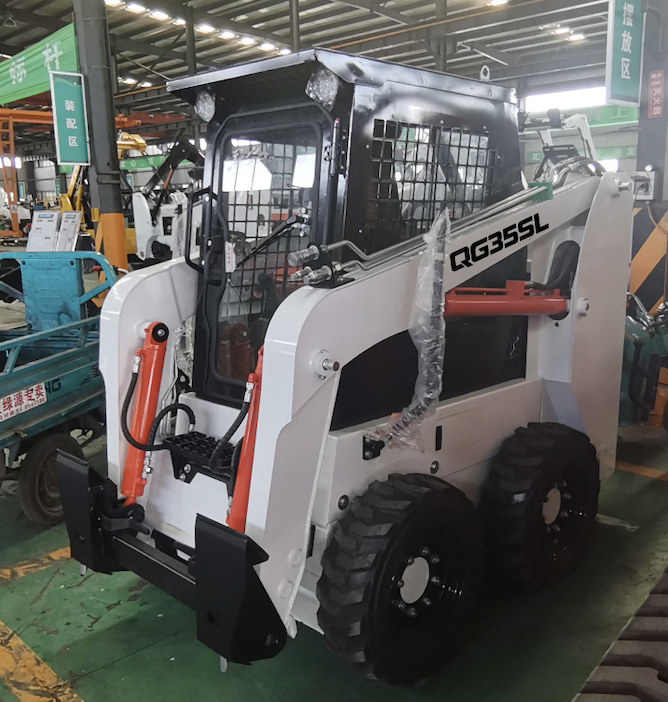

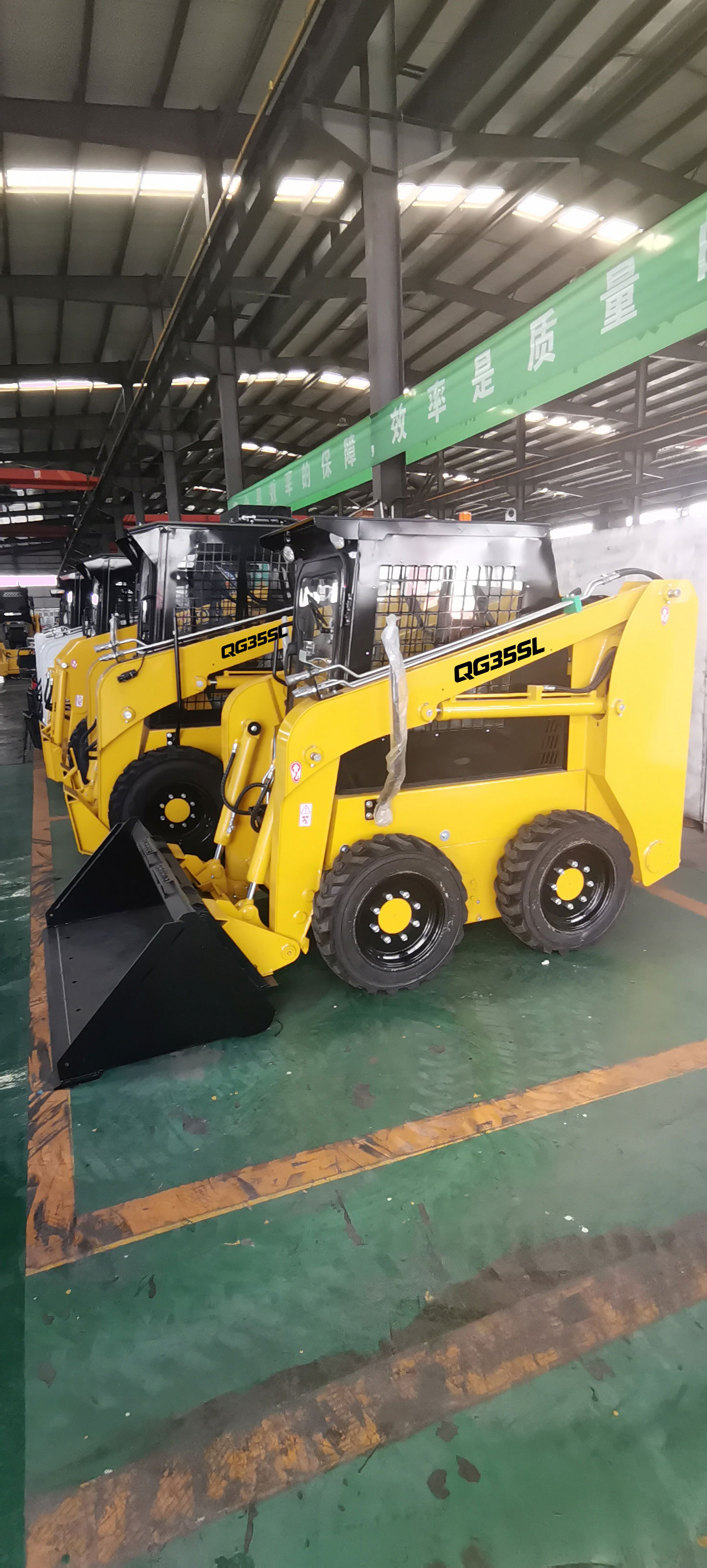

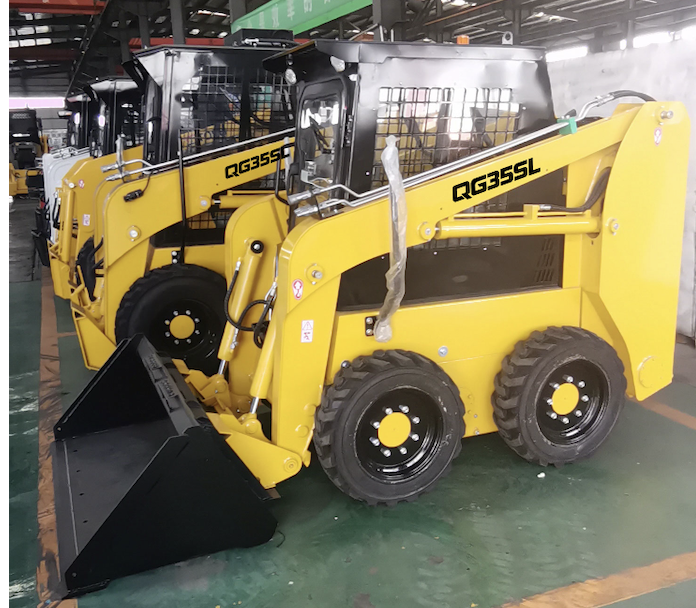

QG35SL Configurations:
Operating weight: 2600 kg
Rated load: 500 kg
Bucket capacity: 0.3 m³
Max Speed: 10 km/h
Max traction: ≥16 kN
Max breakout: ≥8.5 kN
Lifting time of boom: 7 s
Manufacturer: Xinchai
Engine Model: C490BPG
Rated power: 36.7kW/2650rpm
Engine displacement: 2.27 L
Emission Standard: National‑II
Overall operating height: 3300 mm
Height to bucket hinge pin: 2425 mm
Height to top of cab: 2000 mm
Height to bottom of level bucket: 2260 mm
Without bucket length: 2300 mm
Overall length with bucket: 2950 mm
Dumping angle at maximum height: 40°
Dumping height: 2000 mm
Dumping reach: 690 mm
Rollback of bucket on ground: 30°
Rollback of bucket at full height: 104°
Wheelbase: 897 mm
Ground clearance: 140 mm
Angle of departure: 20°
Front turning radius without bucket: 1310 mm
Front tuning radius: 1881 mm
Rear tuning radius: 1296 mm
Rear axle to bumper: 964 mm
Tread width: 1080 mm
Width: 1400 mm
Bucket width: 1422 mm
